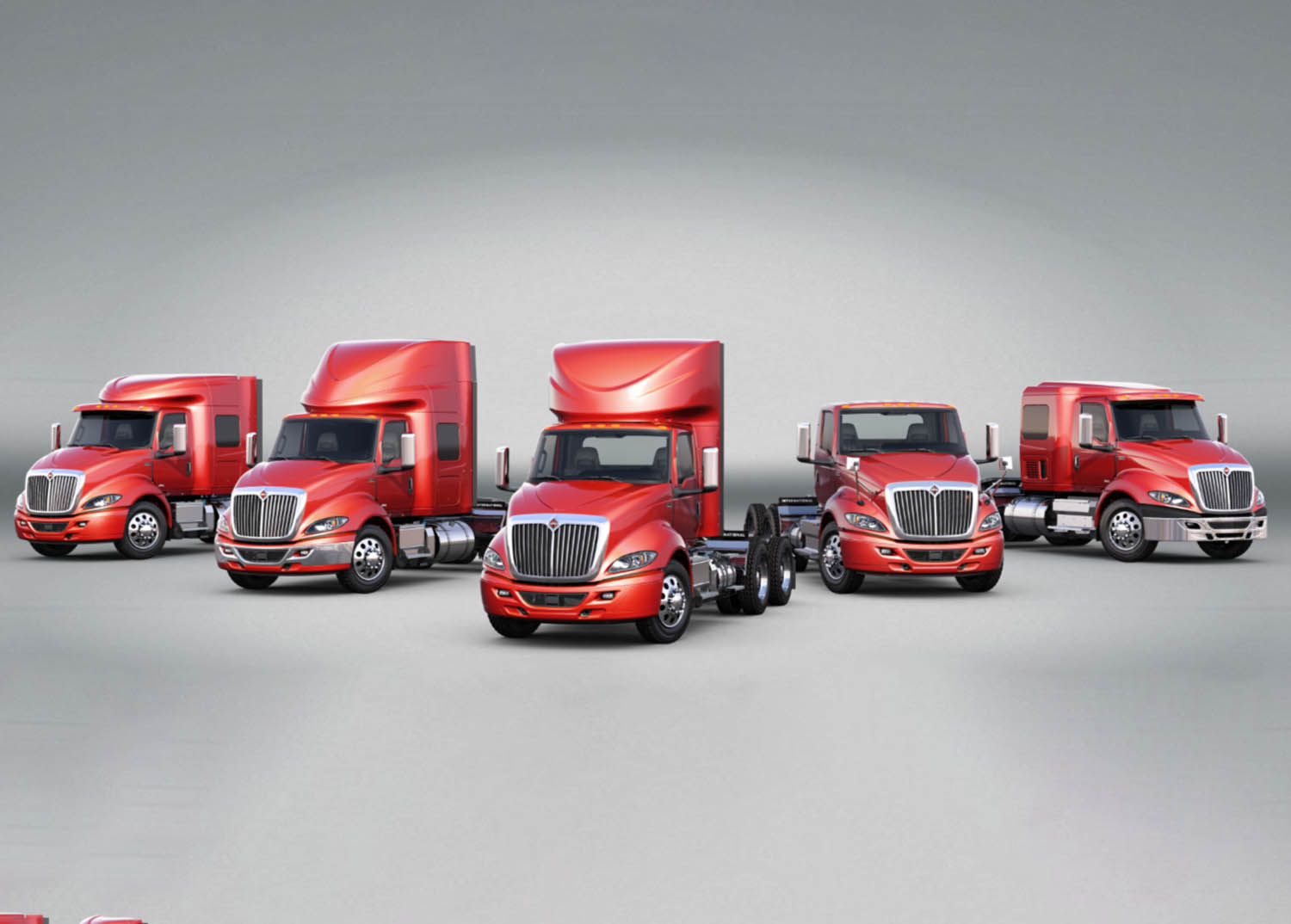

RH Series
Detailed Specs
Axle Configurations
4x2
6x2
6x4
Cab Interior Trim Levels
Classic Trim
Diamond Trim
Cab / Sleeper Configurations
Day Cab
Day Cab with Roof Fairing
56" Hi-Rise Sleeper
56" Hi-Rise Sleeper with Roof Fairing
56" Low-Rise Sleeper
MODELS / BBC / BA
113" BBC / 50" BA
Wheelbase Options
Sleeper Cab
167-226" 4x2
187-240" 6x4
Day Cab
146-226" 4x2
152-240" 6x4
Engines
International® A26: 365 – 475 hp and 1,250 – 1,750 lb.-ft. of torque
Exhaust System
Single canister after-treatment device
Frame Mounted Right Side, Under Cab
Includes Horizontal or Vertical Tailpipe and Guard; Optional Bright Tailpipe and Guard
Frame Rails
Heat Treated Alloy Steel 120,000 PSI
Front Axles
Hendrickson: 12,000-14,000 lbs.
Dana Spicer: 12,000-14,000 lbs.
Meritor: 12,000-14,000 lbs.
Front Suspensions
Spring Monoleaf: 12,000-13,200 lbs.
Parabolic Taperleaf: 12,000-14,000 lbs.
Rear Axles
Single Rear Axle (4x2)
Meritor: 23,000 lbs.
Dana Spicer: 23,000 lbs.
Tandem Rear Axle (6x4)
Meritor: 40,000-46,000 lbs.
Dana Spicer: 40,000-46,000 lbs.
Rear Suspensions
Air Single
International®: 20,000 lbs.
International®: 23,500 lbs. Vari-rate spring
Air Tandem
International®: 40,000 lbs.
Hendrickson:
HTB 40,000 lbs.
Hendrickson
HAS 46,000 lbs.
Transmissions
Automatic
Allison 3000: 5, 6 speed
Allison TC-10: 10 speed
Automated Manual
Eaton Endurant: 11, 12 speed
Eaton Fuller UltraShift PLUS: 13, 18 speed
Eaton Fuller UltraShift PLUS LSE: 16 speed
Eaton Fuller Advantage: 10 speed
Manual
Eaton Fuller Advantage: 10 speed
Fuller: 10, 13, 15, 18 speed
Alternators
Leece-Neville: 12 Volt, 160, 210, 325 Amp
Delco Remy: 12 Volt, 165, 200, 300 Amp
Battery Systems
International®: 12 volt 1950 - 3700 CCA
Fleetrite®: 12 Volt 3300 - 9200 CCA
JCl: 12 Volt 2250 - 3000 CA
Deka: 12 Volt 2800
Enersys Odyssey: 12 Volt 3450 - 4600 CCA
NorthStar: 12 Volt 4600 - 9200 CCA
Brakes
Air Drum Brakes with ABS with Optional Automatic Traction Control and Electronic Stability Control
Air Disc Brakes with Automatic Traction Control, and Electronic Stability Control
Fuel Tanks
Day Cab
Single or Dual 70-120 Gallon Tanks, Non-Polished or Polished Aluminum, Mounted Back of Cab
Sleeper Cab
Single or Dual 70-120 Gallon Tanks, Non-Polished or Polished Aluminum, Mounted Back of Cab or Under Sleeper
Power Steering
Sheppard
TRW
Tires
Continental, Michelin, Bridgestone, Goodyear
