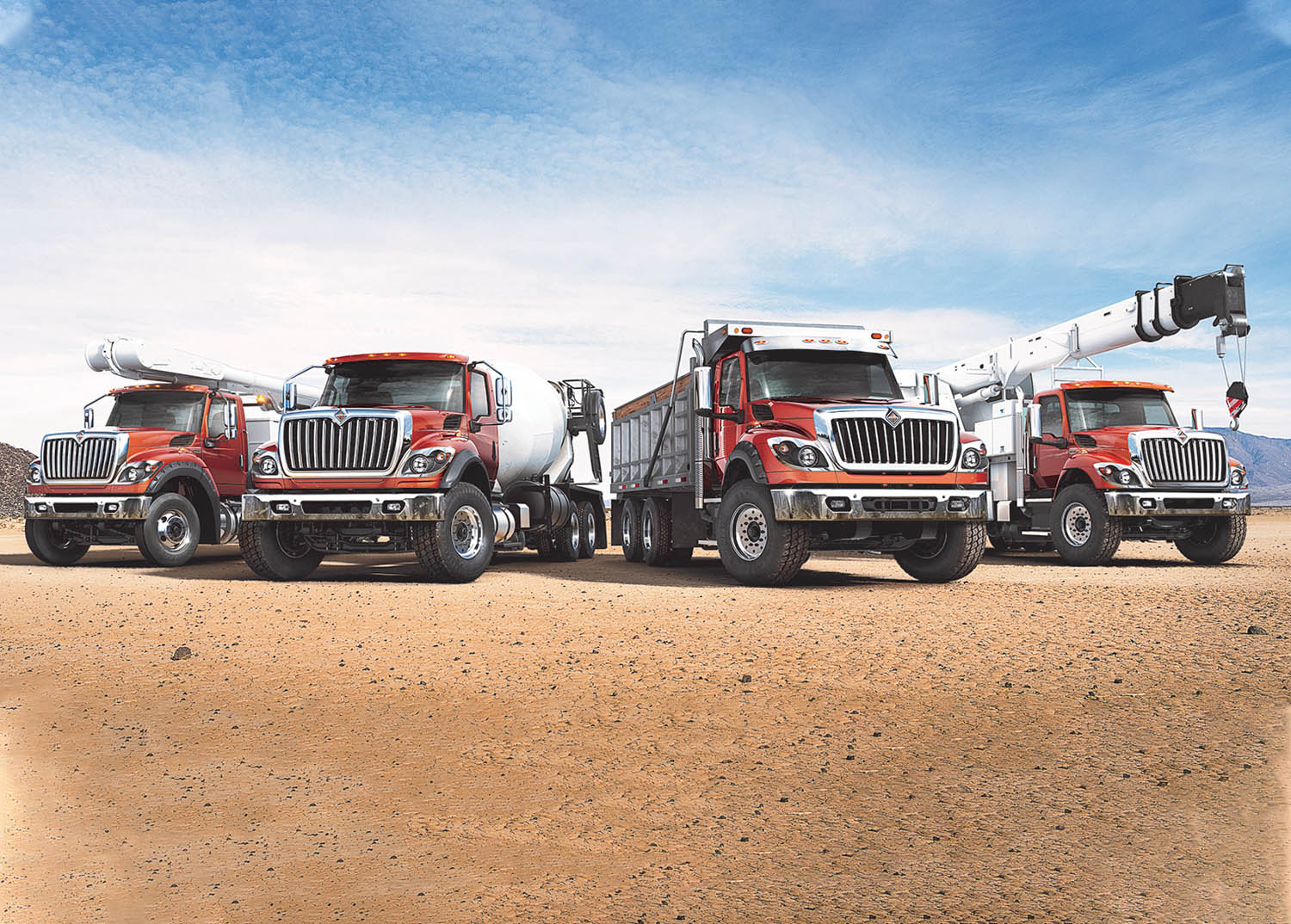

HV Series
Detailed Specs
Axle Configurations
4x2
4x4
6x4
6x6
8x6 Tridem
Cab Interior Trim Levels
Classic
Diamond
Cab / Sleeper Configurations
Day Cab
Extended Cab
Crew Cab (no sleepers)
Models
107" BBC Set-Back Front Axle
107" BBC Set-Forward Front Axle
113" BBC Set-Back Front Axle
113" BBC Set-Forward Front Axle
Wheelbase Range
136 - 340"
Engines
Cummins® B6.7: 200-360 HP, 520-800 lb-ft. torque
Cummins® L9: 260-450 HP, 720-1250 lb-ft. torque
International® A26: 365-500 HP, 1250-1750 lb-ft. torque
Exhaust System
Single canister after-treatment device
Frame Mounted Right Side, Back, or Under Cab
Short Horizontal Tailpipe
Single Vertical Tailpipe, Right Side Back of Cab
Frame Rails
Heat Treated Alloy Steel 120,000 PSI
11.25" x .5" thick Super Single Rail
Front Axles
Dana Spicer: Non-Driving: 10,000 - 22,000 lbs.
Fabco: Driving: 10,000 - 22,000 lbs.
Meritor: Non Driving: 10,000 - 22,000 lbs.; Driving: 10,000 - 18,000 lbs.
Front Suspensions
Spring Multileaf: 14,000 - 20,000 lbs.
Parabolic Taperleaf: 8,000- 23,000 lbs.
Rear Axles
Single Rear Axle (4x2)
Meritor:
Single Reduction: 17,000 - 30,000 lbs.
Double Reduction: 26,000 - 38,000 lbs*
Two-Speed: 21,000 - 23,000 lbs.
Dana:
Single Reduction: 17,500 - 31,000 lbs.
Two-Speed: 19,000 - 23,000 lbs.*
Tandem Rear Axle (6x4)
Meritor:
Single Reduction: 34,000 - 52,000 lbs.
Dana:
Single Reduction: 46,000 lbs.
Rear Suspensions
Chalmers:
23,000 - 52,000 lbs.
Hendrickson:
RT: 34,000 - 52,000 lbs.
HAS: 23,000* - 46,000 lbs.
HMX: 40,000 - 46,000 lbs.
Primaax: 20,000 - 46,000 lbs., 69,000 lbs. (Tridem)
International
20,000 - 40,000* lbs.
Transmissions
Manual:
Eaton: 6, 8LL (10), 9ALL (11), 13, 15, 18 speed *
Automated Manual:
Eaton UltraShift PLUS: 10, 11, 13, 18 speed
Eaton Fuller Advantage: 10 speed
Automatic
Allison Automatic: EVS, RDS, HS series
* (HVMRD 6, 10, 11, and 13 only)
Alternators
Leece-Neville: 12 Volt, 160 - 325 Amp
Delco Remy: 12 Volt, 165 - 240 Amp
Battery Systems
JCI: 12 Volt 1400 - 2100 CCA
Fleetrite®: 12 Volt 1320 - 3800 CCA
Deka: 12 Volt 2775 CCA
Brakes
Air Disc Brakes with ABS, Optional Traction Control, Optional Electronic Stability Program with Traction
Air Disc Brakes
Fuel Tanks
40 - 120 Gallons, Single or Dual, Non-Polished or Polished Aluminum, Mounted Right or Left Side Under Cab
Power Steering
Single Gear Power
Dual Gear Power on Front Axle 16,000 lbs. And Above
Tires
Continental, Michelin, Goodyear, Bridgestone
* = Application Restriction
** = Higher ratings available for fire and rescue applications
