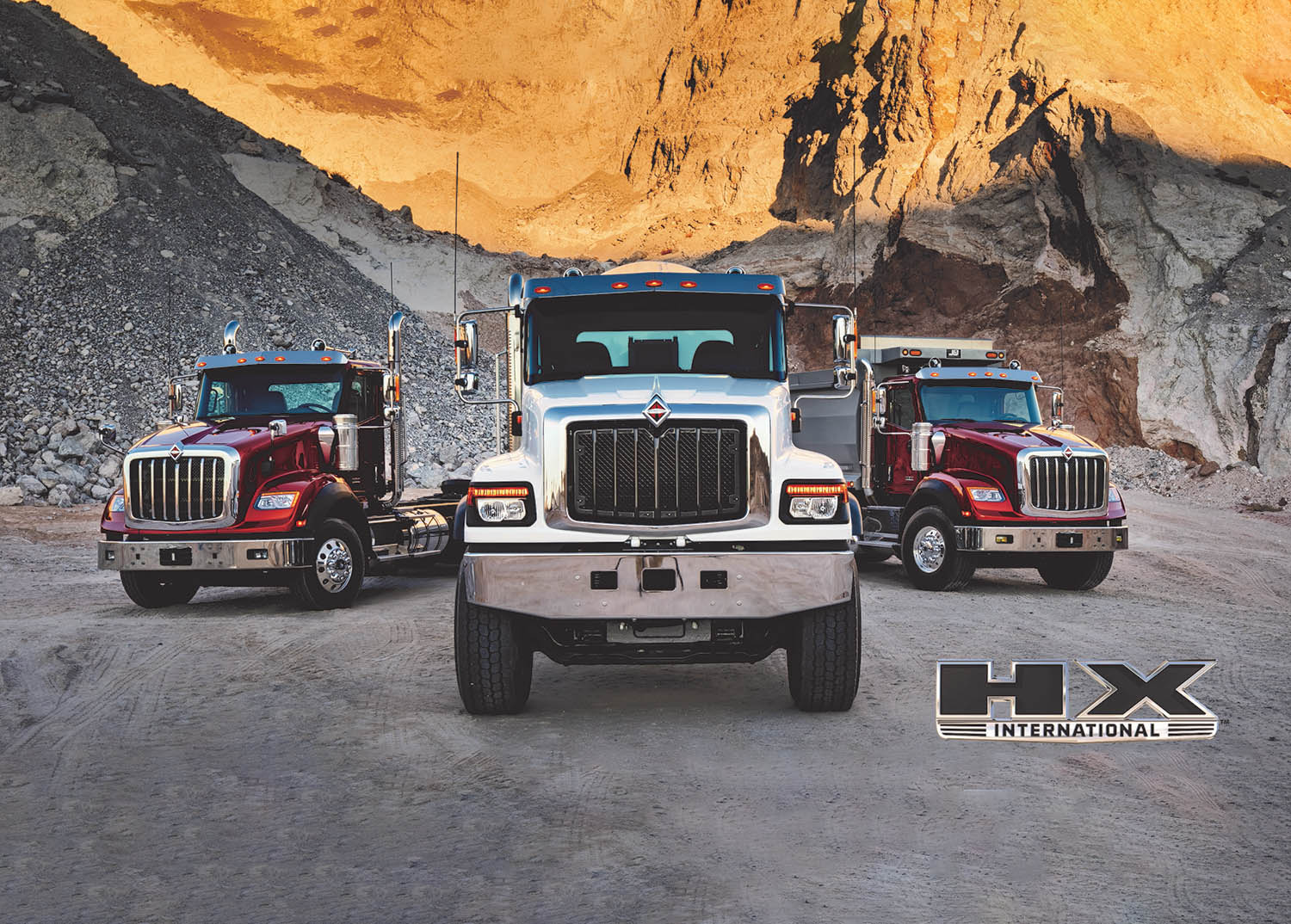

HX Series
Detailed Specs
Models
HX515 114” BBC, Set-Forward Front Axle Truck
HX615 115” BBC, Set-Back Front Axle Truck or Tractor
HX520 120” BBC, Set-Forward Front Axle Truck or Tractor
HX620 119” BBC, Set-Back Front Axle Truck or Tractor
Axle Configurations
6x4
8x6
Cab / Sleeper Configurations
Day Cab
Cab Interior Trim Levels
Classic
Diamond
Frame Rails
Heat Treated Alloy Steel
120,000 PSI
Front Axles
HX515 / HX520
Dana: 16,000 – 20,000 lbs.
Meritor: 12,000 – 20,000 lbs.
HX615 / HX620 SBA
Dana: 16,000 – 22,000 lbs.
Meritor: 13,200 – 22,000 lbs.
Front Suspensions
HX515 / HX520 SFA
Multi-leaf: 20,000 lbs.
Parabolic Taper-leaf: 12,000 – 20,000 lbs.
HX615 / HX620 SBA
Multi-leaf: 14,000 – 23,000 lbs.
Parabolic Taper-leaf: 12,000 – 20,000 lbs.
Slipper- Type: 20,000 – 24,000 lbs.
Rear Axles
Tandem
Dana: 40,000 – 46,000 lbs. Single and Two Speed
Meritor: 40,000 – 70,000 lbs. Single and Double Reduction
Tridem
Meritor: 53,000 lbs.
Rear Suspensions
Spring Suspensions
Chalmers: 40,000 – 52,000 lbs.
Hendrickson HMX: 40,000 lbs. 54", 60", 72", spacing
Hendrickson R, RS, RT: 46,000 – 80,000 lbs.
Air Suspensions
Hendrickson HAS: 40,000 – 46,000 lbs. 55" and 60" spacing
Hendrickson PRIMAAX®: 46,000 – 52,000 lbs. 55", 60", 72”spacing
Hendrickson PAX Tridem: 69,000 lbs.
Engines
Navistar N13 13L:
370 – 475hp*, 1,350 – 1,700 lb.-ft.* torque
*475hp / 1700 lb.ft. rating HX615 only
Cummins X15 15L:
400-605 HP, 1650-2050 lb-ft. torque
International A26:
370-500 HP, 1350-1750 lb-ft. torque
Transmissions
Manual
Eaton: 8LL (10), 9ALL (11), 13, 15, 18 speed
Automated Manual:
Eaton UltraShift PLUS: 8LL (10), 9ALL (11), 13, 18 speed
Eaton Fuller Advantage: 10 speed
International A26:
Allison EVS, RDS, OFS series
Exhaust Systems
Switchback After Treatment Device:
Single or Dual Vertical Stacks
Vertical After Treatment Device:
Single Vertical Stack
Electrical Systems
HX Series Electrical System
Alternators
Delco Remy:
165 – 300 amp.
Leece-Neville:
160 – 240 amp.
Battery System
1,980 - 3,800 CCA's
Headlights
Halogen Headlamps With LED Daytime running Lights and Turn Signals
Fuel Tanks
60 – 240 Gallons, Single or Dual, Polished or Non-Polished
LH Mounted Under Cab or Dual Under Cab or Back of Cab
24" or 26" Diameter
Braking and Control Systems
Traction Control
Electronic Stability Control (ESP)
Bendix® Wingman®*
* = Available via custom engineering
